Product Details:
|
| Material: | Ceramic | Certification: | UL |
|---|---|---|---|
| Protection Type: | AR | Breaking Capacity: | AC110KA/DC20KA |
| High Light: | DC20KA High Rupturing Capacity Fuse,AC110KA High Rupturing Capacity Fuse |
||

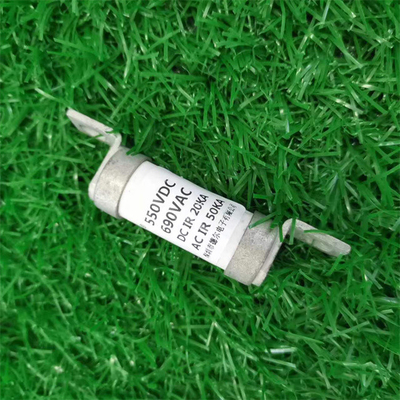

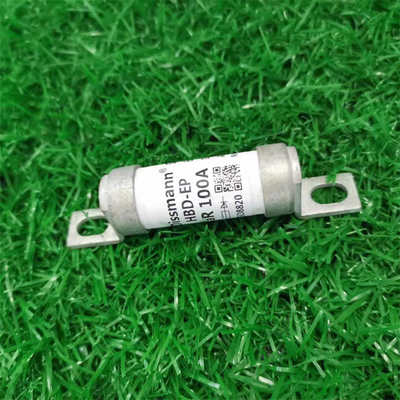

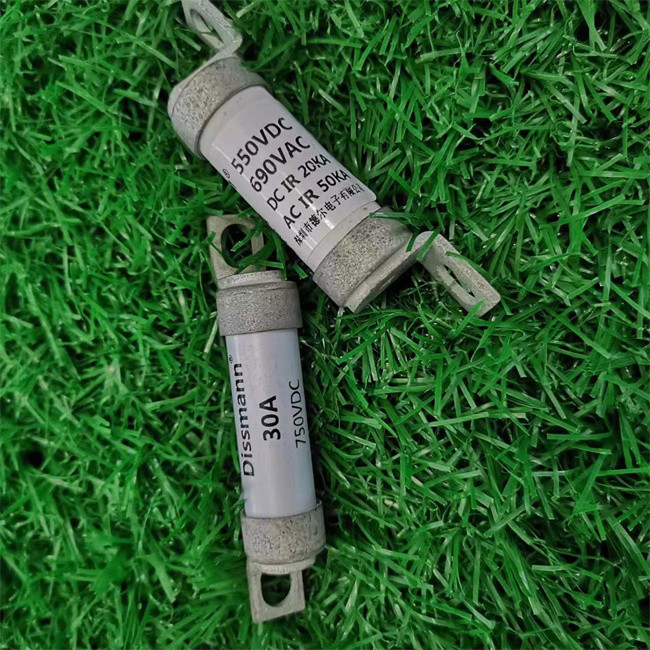

This series of products are round tube type quick fuse, with small volume and high breaking capacity. It is applicable to a wide temperature range, can withstand high strength mechanical vibration and impact, wide temperature impact and strong chemical load, is suitable for road vehicle industry applications, and can be used as short circuit, overload and backup protection of electric vehicle driving power system, power conversion system, energy storage and power battery, energy storage capacitor, frequency conversion controller, charger, wire and other vehicle devices and equipment.
1.AC240V/DC150V BS88-HBD series fuse(Rated current:6A-900A, Protection type: aR, Breaking capacity: AC100KA,DC20KA)
Product Type:
| Number |
Model |
Product code |
Rated current A |
I²t(A²Sec) |
Power consumption W |
|
| Pre-arc | Fusing | |||||
| 1 | LCP/LCT | HBD-6LCP/HBD-6LCT | 6 | 2.00 | 8.8 | 1.00 |
| HBD-10LCP/HBD-10LCT | 10 | 3.76 | 21.6 | 2.48 | ||
| HBD-12LCP/HBD-12LCT | 12 | 6.92 | 31.6 | 2.48 | ||
| HBD-16LCP/HBD-16LCT | 16 | 19.7 | 98.4 | 2.50 | ||
| HBD-20LCP/HBD-20LCT | 20 | 24.6 | 156.0 | 3.82 | ||
| 2 | LEP/LET | HBD-25LEP/HBD-25LET | 25 | 17.6 | 246.0 | 3.96 |
| HBD-32LEP/HBD-32LET | 32 | 31.2 | 442.0 | 4.75 | ||
| HBD-35LEP/HBD-35LET | 35 | 49.3 | 590.0 | 4.90 | ||
| HBD-50LEP/HBD-50LET | 50 | 97.6 | 136.5 | 6.80 | ||
| HBD-63LEP/HBD-63LET | 63 | 176.0 | 2120.0 | 8.95 | ||
| HBD-80LEP/HBD-80LET | 80 | 293.0 | 3695.0 | 9.70 | ||
| HBD-100LEP/HBD-100LET | 100 | 580.0 | 7300.0 | 10.2 | ||
| HBD-125LEP/HBD-125LET | 125 | 597.0 | 7380.0 | 15.8 | ||
| HBD-160LEP/HBD-160LET | 160 | 1060.0 | 15440.0 | 19.0 | ||
| HBD-180LEP/HBD-180LET | 180 | 1540.0 | 27950.0 | 21.0 | ||
| 3 | LMP/LMT | HBD-160LMP/HBD-160LMT | 160 | 1065.0 | 15440.0 | 16.5 |
| HBD-200LMP/HBD-200LMT | 200 | 1460.0 | 19300.0 | 26.8 | ||
| HBD-250LMP/HBD-250LMT | 250 | 3100.0 | 38670.0 | 28.0 | ||
| HBD-315LMP/HBD-315LMT | 315 | 5830.0 | 72000.0 | 33.0 | ||
| HBD-350LMP/HBD-350LMT | 350 | 7760.0 | 97200.0 | 34.7 | ||
| HBD-400LMP/HBD-400LMT | 400 | 13550.0 | 153000.0 | 38.9 | ||
| HBD-450LMP/HBD-450LMT | 450 | 17470.0 | 210100.0 | 42.3 | ||
| HBB-500LMP/HBD-500LMT | 500 | 21250.0 | 259400.0 | 58.3 | ||
| HBB-550LMP/HBD-550LMT | 550 | 25500.0 | 313000.0 | 76.0 | ||
| 5 | LMMP/LMMT | HBD-400LMMP/HBD-400LMMT | 400 | 5830.0 | 76500.0 | 57.7 |
| HBD-500LMMP/HBD-500LMMT | 500 | 13600.0 | 162400.0 | 62.0 | ||
| HBD-630LMMP/HBD-630LMMT | 630 | 23200.0 | 285300.0 | 74.0 | ||
| HBD-710LMMP/HBD-710LMMT | 710 | 31000.0 | 437000.0 | 77.0 | ||
| HBD-800LMMP/HBD-800LMMT | 800 | 50400.0 | 569000.0 | 80.1 | ||
| HBD-900LMMP/HBD-900LMMT | 900 | 72600.0 | 758000.0 | 96.0 | ||
2.AC690V/DC550V BS88-HBD series fuse(Rated current:6A-700A, Protection type: aR, Breaking capacity: AC100KA,DC20KA)
Product Type:
|
Number |
Model |
Product code |
Rated current A |
I²t(A²Sec) |
Power consumption W |
|
| Pre-arc | Fusing | |||||
| 1 | CP/CT | HBD-6CP/HBD-6CT | 6 | 2.0 | 13.0 | 1.9 |
| HBD-10CP/HBD-10CT | 10 | 7.1 | 47.2 | 2.9 | ||
| HBD-12CP/HBD-12CT | 12 | 10.2 | 65.9 | 2.9 | ||
| HBD-16CP/HBD-16CT | 16 | 16.3 | 107.8 | 6.8 | ||
| HBD-20CP/HBD-20CT | 20 | 32.4 | 215.6 | 6.8 | ||
| 2 | EP/ET | HBD-16EP/HBD-16ET | 16 | 25.6 | 130.5 | 3.0 |
| HBD-20EP/HBD-20ET | 20 | 40.0 | 225.0 | 3.5 | ||
| HBD-25EP/HBD-25ET | 25 | 25.3 | 255.0 | 6.8 | ||
| HBD-32EP/HBD-32ET | 32 | 31.7 | 346.5 | 11.0 | ||
| HBD-35EP/HBD-35ET | 35 | 51.5 | 495.0 | 11.0 | ||
| HBD-40EP/HBD-40ET | 40 | 104.0 | 903.0 | 8.9 | ||
| HBD-45EP/HBD-45ET | 45 | 106.5 | 1110.0 | 10.0 | ||
| HBD-50EP/HBD-50ET | 50 | 118.5 | 1290.0 | 11.0 | ||
| HBD-56EP/HBD-56ET | 56 | 137.0 | 1530.0 | 13.7 | ||
| HBD-63EP/HBD-63ET | 63 | 168.0 | 1978.0 | 15.6 | ||
| HBD-80EP/HBD-80ET | 80 | 353.0 | 3890.0 | 18.0 | ||
| HBD-100EP/HBD-100ET | 100 | 1200.0 | 4350.0 | 17.0 | ||
| 3 | HP/HT | HBD-32HP/HBD-32HT | 32 | 108 | 13000 | 10.5 |
| HBD-40HP/HBD-40HT | 40 | 165 | 2100 | 13.0 | ||
| HBD-50HP/HBD-50HT | 50 | 260 | 3350 | 16.0 | ||
| HBD-63HP/HBD-63HT | 63 | 480 | 6000 | 19.0 | ||
| HBD-80HP/HBD-80HT | 80 | 900 | 11200 | 22.8 | ||
| HBD-100HP/HBD-100HT | 100 | 1460 | 18500 | 28.0 | ||
| HBD-125HP/HBD-125HT | 125 | 2400 | 30200 | 34.5 | ||
| HBD-160HP/HBD-160HT | 160 | 4300 | 54000 | 37.5 | ||
| HBD-200HP/HBD-200HT | 200 | 8100 | 101000 | 40.0 | ||
| 4 | EEP/EET | HBD-90EEP/HBD-90EET | 90 | 492 | 4510 | 19.0 |
| HBD-110EEP/HBD-110EET | 110 | 605 | 6565 | 26.5 | ||
| HBD-140EEP/HBD-140EET | 140 | 1060 | 11880 | 34.0 | ||
| HBD-160EEP/HBD-160EET | 160 | 1470 | 16490 | 38.2 | ||
| 5 | SM/ST | HBD-180SM/HBD-180ST | 180 | 1358 | 13230 | 39.0 |
| HBD-200SM/HBD-200ST | 200 | 2548 | 17760 | 40.0 | ||
| HBD-225SM/HBD-225ST | 225 | 3552 | 25200 | 42.8 | ||
| HBD-250SM/HBD-250ST | 250 | 4990 | 3560 | 47.5 | ||
| HBD-280SM/HBD-280ST | 280 | 6860 | 51000 | 48.2 | ||
| HBD-315SM/HBD-315ST | 315 | 9760 | 71600 | 54.5 | ||
| HBD-350SM/HBD-350ST | 350 | 14100 | 96600 | 55.6 | ||
| HBD-400SM/HBD-400ST | 400 | 18500 | 125000 | 58.0 | ||
| 6 | SMM/STT | HBD-400SMM/HBD-400STT | 400 | 9680 | 69600 | 83.9 |
| HBD-450SMM/HBD-450STT | 450 | 14000 | 94800 | 90.0 | ||
| HBD-500SMM/HBD-500STT | 500 | 19200 | 136500 | 99.8 | ||
| HBD-550SMM/HBD-550STT | 550 | 27600 | 195650 | 100.3 | ||
| HBD-630SMM/HBD-630STT | 630 | 40800 | 272800 | 101.9 | ||
| HBD-700SMM/HBD-700STT | 700 | 54000 | 373800 | 119.2 | ||
