Product Details:
|
| Material: | Ceramic | Colour: | Beige |
|---|---|---|---|
| Rated Voltage: | 600VDC | Rated Current: | 1000A |
| Breaking Capacity: | 50kA | Standard: | IEC60269, UL248 |
| Usage: | Overload Protection, Charging Station | Keyword: | NH Type HRC Fuse |
| High Light: | high rupturing capacity fuse,600VDC high rupturing capacity fuse,IEC60269high rupturing fuse |
||

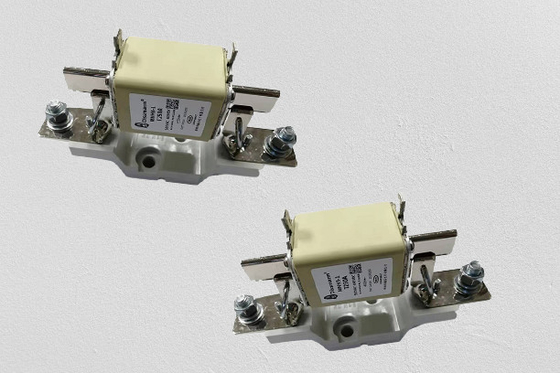

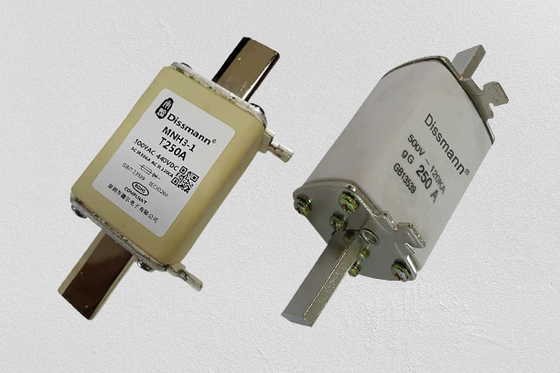

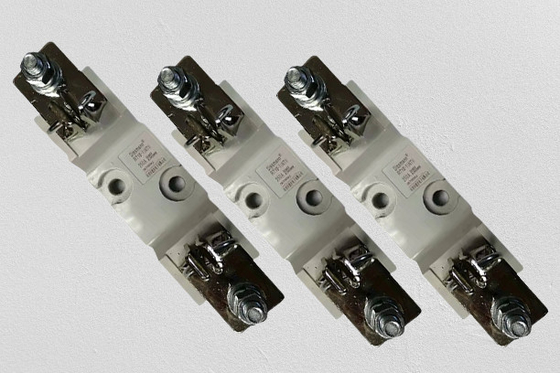

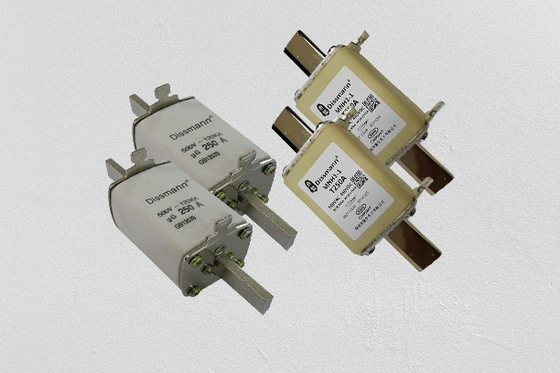

HRC NH Type fuse Low Voltage HRC Fuse Link and Base NT RT NH Fuse
Product Details:
Material:Base / Cap: Ceramic
Pins: Zinc Alloy
Product presentation:
|
Rated Voltage 额定电压 |
AC500V / DC250V |
Type Protection 保护类别 |
aR |
| Rated Current 额定电流 | 2A-100A |
Breaking Capacity 分断能力 |
AC120KA |
|
Meet the Requirement 符合要求 |
IEC60269, 欧盟和RoHS 指令 |
Remarks 备注 |
产品外形尺寸(mm)/Overall dimensions of the product(mm)
产品型号/Product type
|
Model 型号 |
Rated Current 额定电流A |
Power dissipation 功耗W |
| PVN-000-002 | 2A | 1.9 |
| PVN-000-004 | 4A | 1.5 |
| PVN-000-006 | 6A | 1.6 |
| PVN-000-010 | 10A | 1.1 |
| PVN-000-016 | 16A | 1.8 |
| PVN-000-020 | 20A | 2.3 |
| PVN-000-025 | 25A | 2.4 |
| PVN-000-032 | 32A | 3.1 |
| PVN-000-035 | 35A | 3.0 |
| PVN-000-040 | 40A | 3.7 |
| PVN-000-050 | 50A | 4.1 |
| PVN-000-063 | 63A | 5.4 |
| PVN-000-080 | 80A | 6.5 |
| PVN-000-100 | 100A | 7.5 |
Application
This series fuse is suitable for AC 50Hz,rated voltage to 1140V,rated current to 1250A.lt is mainly used in the electric installation for protecting circuit from overload and short circuit (gG/GL);it also may derive for protecting the semiconductor device and others complete set installment from short-circuit (aR)as well as the electric motor from short-circuit(aM). The rated breaking capability for this series fuse is to 120KA.This series Fuses conform to national standard GB13539 and International electrical committee standard IEC60269.
