Product Details:
|
| Material:: | Ceramic | Colour:: | White |
|---|---|---|---|
| Rated Voltage:: | 500VDC | Rated Current:: | 250A |
| Breaking Capacity:: | DC20KA | Standard:: | UL248-20、ISO8820、 JASO-D622、ROHs |
| Usage:: | Semiconductor Protection,low Voltage Automotive | Keyword：: | Semiconductor Protection Fuse |
| High Light: | 250A Bolt Down Fuse,ROHs Low Current Fuse,250A Low Current Fuse |
||

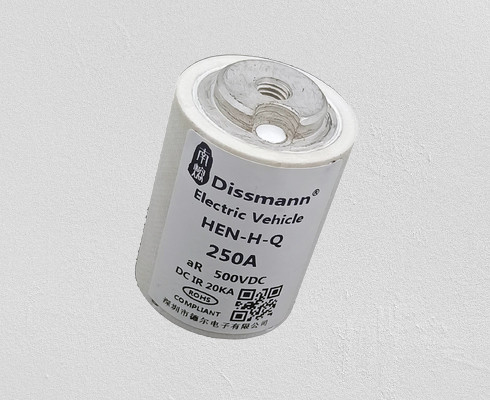

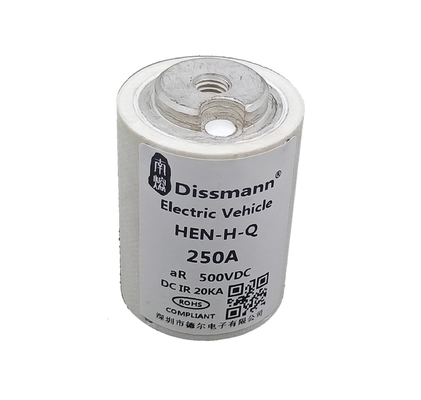

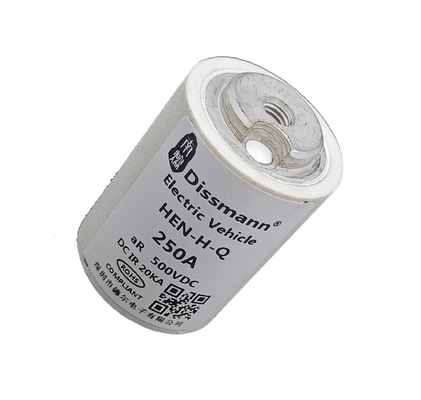

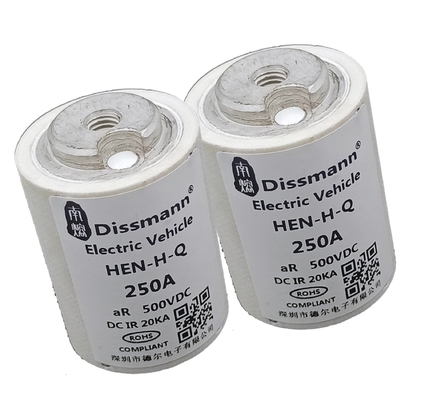

Bolt Down Fuse Semiconductor Protection Fuse Low Current Fuse
Material:
Noumenon: Ceramic
Pins: Copper alloy
Product Presentation:
|
Rated Voltage |
AC/DC500V or lower |
Type Protection |
aR |
| Rated Current | 200A-630A |
Breaking Capacity
|
AC100KA,DC20KA (time constant≤15ms) |
|
Meet the Requirement |
UL248-20,ISO8820,JASO-D622, EU and Rosh Directive |
Remarks |
gR |
Overall dimensions of the product(mm)
| 尺寸代码 | A±0.3 | B±0.5 | C±0.5 | D±0.3 | E±0.5 | M |
| HN1 | 53 | 45 | 31 | 20 | 7 | M6 |
| HM1 | 53 | 45 | 31 | 20 | 7 | M8 |
| HN2 | 53 | 45 | 37 | 24 | 7 | M6 |
| HM2 | 53 | 45 | 37 | 24 | 7 | M8 |
Current characteristic curve
Product type
|
Model |
Rated Current |
I2t(A2s) |
Power dissipation |
Size code |
Install |
|
| Pre-arc |
Total |
|||||
| HEN-H-Q-N200 | 200A | 6000 | 20400 | 23 | HN1 |
Mounting Bolt M6 recommended torque 6N·m
|
| HEN-H-Q-N225 | 225A | 9200 | 30500 | 25 | ||
| HEN-H-Q-N250 | 250A | 11500 | 40000 | 27 | ||
| HEN-H-Q-N275 | 275A | 14800 | 50000 | 29 | ||
| HEN-H-Q-N300 | 300A | 17000 | 60000 | 30 | ||
| HEN-H-Q-N325 | 325A | 19200 | 73500 | 32 | ||
| HEN-H-Q-N350 | 350A | 22000 | 86500 | 34 | ||
| HEN-H-Q-N375 | 375A | 25200 | 102000 | 36 | ||
| HEN-H-Q-N400 | 400A | 30000 | 117000 | 37 | ||
| HEN-H-Q-N450 | 450A | 56500 | 322000 | 40 |
HN2 |
|
| HEN-H-Q-N500 | 500A | 87000 | 365000 | 44 | ||
| HEN-H-Q-N550 | 550A | 115000 | 410000 | 47 | ||
| HEN-H-Q-N630 | 630A | 150000 | 512000 | 50 | ||
| HEN-H-Q-M200 | 200A | 6000 | 20400 | 23 |
HM1 |
Mounting Bolt M8 recommended torque 12N·m
|
| HEN-H-Q-M225 | 225A | 9200 | 30500 | 25 | ||
| HEN-H-Q-M250 | 250A | 11500 | 40000 | 27 | ||
| HEN-H-Q-M275 | 275A | 14800 | 50000 | 29 | ||
| HEN-H-Q-M300 | 300A | 17000 | 60000 | 30 | ||
| HEN-H-Q-M325 | 325A | 19200 | 73500 | 32 | ||
| HEN-H-Q-M350 | 350A | 22000 | 86500 | 34 |
HM2 |
|
| HEN-H-Q-M375 | 375A | 25200 | 102000 | 36 | ||
| HEN-H-Q-M400 | 400A | 30000 | 117000 | 37 | ||
| HEN-H-Q-M450 | 450A | 56500 | 322000 | 40 | ||
| HEN-H-Q-M500 | 500A | 87000 | 365000 | 44 | ||
| HEN-H-Q-M550 | 550A | 115000 | 410000 | 47 | ||
| HEN-H-Q-M630 | 630A | 150000 | 512000 | 50 | ||
