Product Details:
|
| Material:: | Fiber Pipe | Colour:: | White |
|---|---|---|---|
| Rated Voltage:: | 2000VDC | Rated Current:: | 1800A |
| Breaking Capacity:: | DC250KA | Standard:: | UL248-13、 IEC60269.4 |
| Usage:: | Semiconductor Protection,TPA | Keyword：: | High Current Fuse |
| High Light: | Semiconductor Energy Storage System Fuse,Fiber Pipe Energy Storage System Fuse,Semiconductor high current automotive fuses |
||

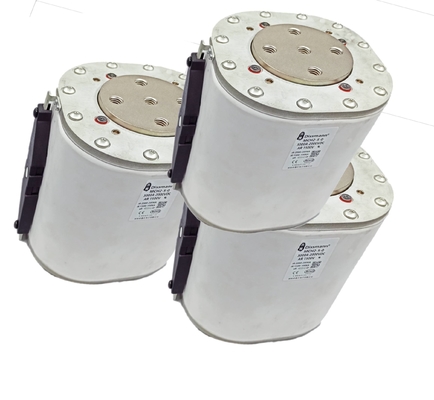

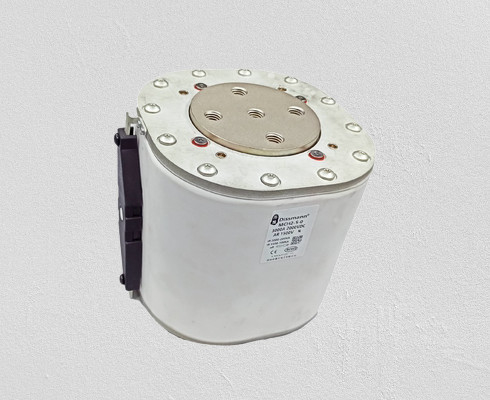

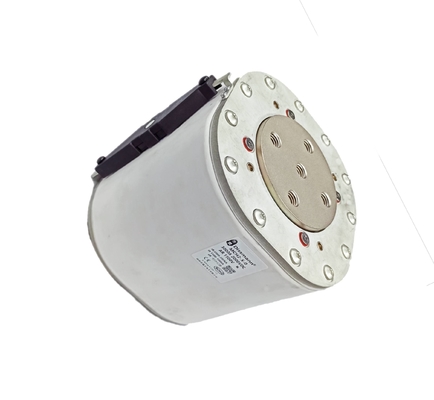

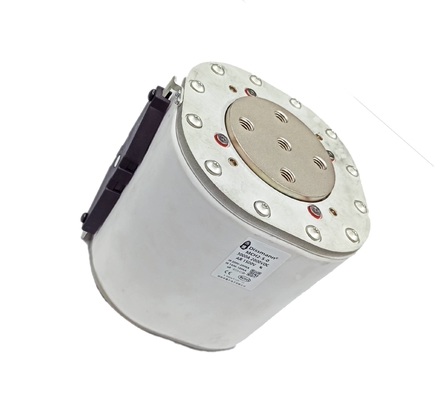

Automotive passenger fuse high current fuse high perfomance fuse
Material:
Noumenon: fiber pipe
Pins: Alloy
Features:
Energy storage fuse
Many kinds of Energy storage fuse
Current rating: 1800A.
Voltage rating: 2000VDC
Breaking capacity:DC250KA
Product Presentation:
|
Rated Voltage 额定电压 |
DC1500V或低于 |
Type Protection 保护类别 |
aR |
| Rated Current 额定电流 | 630A-1800A |
Breaking Capacity 分断能力 |
DC250KA (时间常数4ms) |
|
Meet the Requirement 符合要求 |
UL248-13,IEC60269.4 欧盟和RoHS 指令 |
Remarks 备注 |
产品外形尺寸(mm)/Overall dimensions of the product(mm)
电流特性曲线图/
Currentcharacteristiccurve
产品型号/Product type
|
Model 型号 |
Rated Current 额定电流A |
I2t(A2s) |
Power dissipation 功耗W |
|
| 弧前 | 总 | |||
| MCH2-4-2-630A | 630 | 169,000 1,098,000 | 1,098,000 1,098,000 | 183 |
| MCH2-4-2-700A | 700 | 200,000 1,434,000 192 | 1,434,000 | 192 |
| MCH2-4-2-800A | 800 | 320,000 | 2,081,000 | 202 |
| MCH2-4-2-900A | 900 | 467,000 | 3,035,000 | 212 |
| MCH2-4-2-1000A | 1000 | 658,000 | 4,280,000 | 233 |
| MCH2-4-2-1100A | 1100 | 804,000 | 5,228,000 | 241 |
| MCH2-4-2-1250A | 1250 | 1,140,000 | 7,410,000 | 262 |
| MCH2-4-2-1350A | 1350 | 1,430,000 | 9,290,000 | 273 |
| MCH2-4-2-1500A | 1500 | 1,870,000 | 12,140,000 | 286 |
| MCH2-4-2-1600A | 1600 | 2,450,000 | 15,910,000 | 284 |
| MCH2-4-2-1800A | 1800 | 3,170,000 | 20,570,000 | 315 |
