Product Details:
|
| MCeramicaterial:: | Electric Wood Shell | Colour:: | Black |
|---|---|---|---|
| Usage:: | Automotive Car,charging Pile,electric Motor | Breaking Capacity:: | DC2700A |
| Rated Voltage:: | 500VDC | Current Rating:: | 200A |
| Keyword:: | Mini Car Fuse | Certification:: | UL, CCC, RoHS |
| High Light: | Black ceramic auto fuses,DC2700A ceramic auto fuses,CCC low current fuse |
||

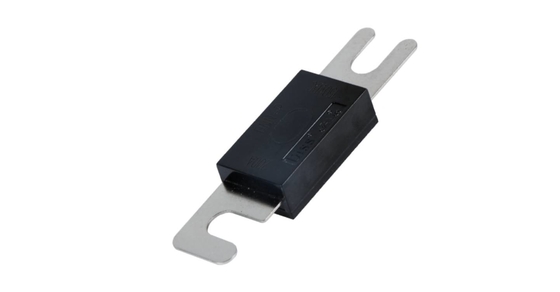

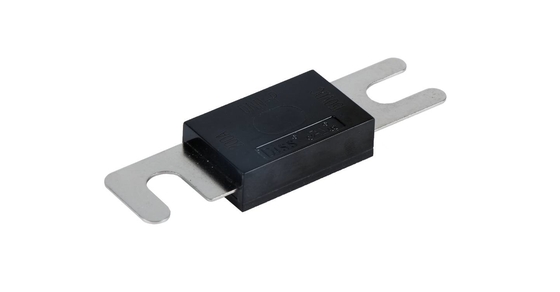

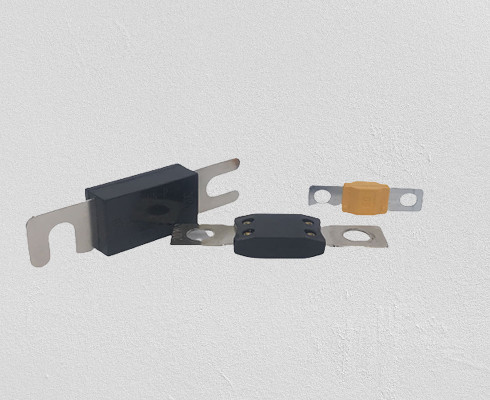

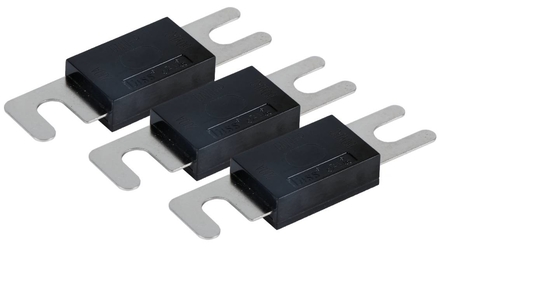

Automotive car fuse low current fuse cartridge fuse Mini plug fuse
Material:
Noumenon: Electric wood shell
Pins: Copper alloy
Product presentation
|
Rated Voltage 额定电压 |
150VDC/250VAC |
Type Protection 保护类别 |
Time-lag慢断 |
| Rated Current 额定电流 | 10A-500A |
Breaking Capacity 分断能力 |
DC2700A |
|
Meet the Requirement 符合要求 |
UL248-20,ISO8820,JASO-D622, 欧盟和RoHS 指令 |
Remarks 备注 |
UL |
产品外形尺寸(mm)/Overall dimensions of the product(mm)
制造材料/Manufacturing material
|
Component name 部件名称 |
Material 材料 |
|
Contact the foot 接触脚 |
Copper alloy 铜合金 |
|
Noumenon 本体 |
Electric wood shell 电木壳 |
电流特性曲线图/
Current characteristic curve
性能标准/Performance criteria
| Load(测试电流) | Opening time(熔断时间) | |
| 10A～500A | ||
| 最小时间 min | 最大时间 max | |
| 110% | 14400 | ∞ |
| 160% | 10 | ∞ |
| 200%(200A及以下) | 0 | 100 |
| 200%(200A以上) | 0 | 300 |
| 250%(200A及以下) | 0 | 60 |
| 250%(200A以上) | 0.8 | 120 |
| 600% | 0.02 | 10 |
|
Model 型号 |
Product code 产品代码 |
Rated current 额定电流 A |
Voltage drop 电压降 mV |
Installation requirement安装要求 |
| DNN-H | DNN-P-35 | 35 | 130 |
Install bolt M8, recommended torque 10N·m ±1 N·m 安装螺栓M8,推荐扭矩10N·m±1 N·m |
| DNN-P-40 | 40 | 125 | ||
| DNN-P-50 | 50 | 120 | ||
| DNN-P-60 | 60 | 116 | ||
| DNN-P-80 | 80 | 112 | ||
| DNN-P-100 | 100 | 110 | ||
| DNN-P-125 | 125 | 105 | ||
| DNN-P-130 | 130 | 100 | ||
| DNN-P-150 | 150 | 96 | ||
| DNN-P-175 | 175 | 90 | ||
| DNN-P-200 | 200 | 86 | ||
| DNN-P-225 | 225 | 83 | ||
| DNN-P-250 | 250 | 80 | ||
| DNN-P-275 | 275 | 77 | ||
| DNN-P-300 | 300 | 75 | ||
| DNN-P-325 | 325 | 83 | ||
| DNN-P-350 | 350 | 81 | ||
| DNN-P-400 | 400 | 80 | ||
| DNN-P-425 | 425 | 78 | ||
| DNN-P-450 | 450 | 78 | ||
| DNN-P-500 | 500 | 76 |
UL Certificate:

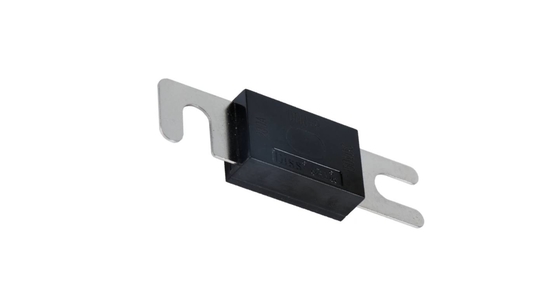

Product Anatomy
